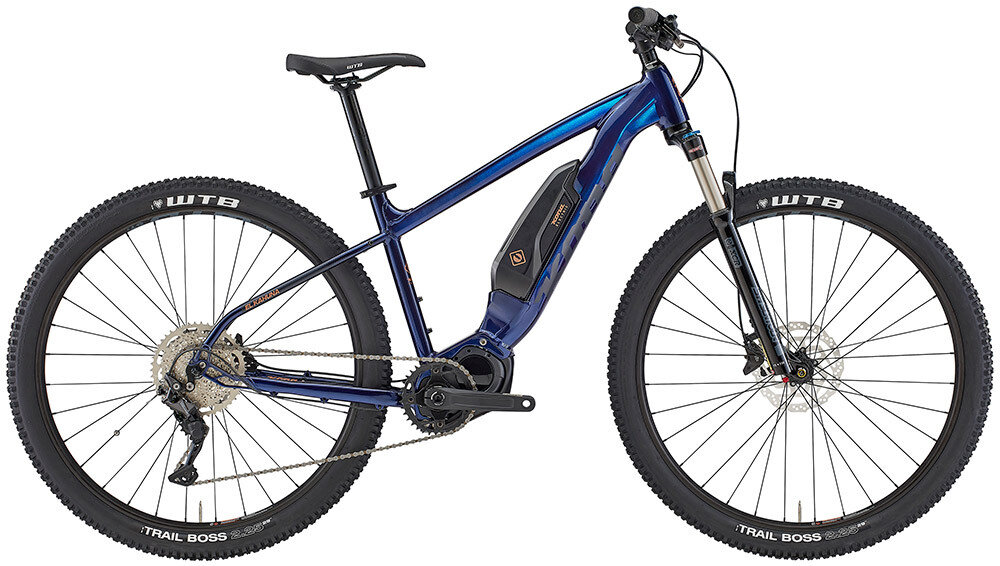

The Kahuna is one of our best-selling hardtails. People love its simplicity and practicality. We brought that ethos to the El Kahuna and built a bike that was multipurpose—capable of riding the local singletrack for hours on end, and still have enough battery to go get the groceries on the way home. Its Shimano pedal-assist motor is powered by a semi-integrated battery and its 100mm fork provides just the right amount of suspension to absorb smaller hits on the trail. 29” wheels with 2.25” tires make this bike comfortable across all kinds of terrain. The El Kahuna the perfect all-rounder.
GEOMETRY mminches
Size | S | M | L | XL | |
1 | ST Length | 370 | 420 | 470 | 530 |
2 | TT Length | 581 | 607 | 633 | 665 |
3 | Reach | 404 | 428 | 453 | 484 |
4 | Stack | 619 | 623 | 628 | 633 |
5 | Standover | 738 | 742 | 747 | 766 |
6 | HT Angle | 69 | 69 | 69 | 69 |
7 | HT Length | 110 | 115 | 120 | 125 |
8 | ST Angle | 74 | 74 | 74 | 74 |
9 | CS Length | 465 | 465 | 465 | 465 |
10 | BB Drop | 60 | 60 | 60 | 60 |
11 | BB Height | 315 | 315 | 315 | 315 |
12 | Wheelbase | 1134 | 1160 | 1187 | 1220 |
13 | Front Center | 676 | 701 | 728 | 761 |
14 | Fork Length | 506 | 506 | 506 | 506 |
15 | Fork Offset | 51 | 51 | 51 | 51 |
Specs
Frame | Kona 6061 Aluminum Butted |
---|---|
Fork | Suntour XCR34 Air 100mm Tapered 110 Spacing |
Headset | FSA No.57BP |
Rear Shock | n/a |
Rims/Wheels | WTB ST i27 TCS 2.0 |
Hubs | Shimano |
Spokes | Stainless 14g |
Tires | WTB Trail Boss 29x2.25" |
Crankset | FSA E-Bike |
Chainwheel | 36t |
Bottom Bracket | n/a |
Chain | Shimano HG54 |
Front Derailleur | n/a |
Rear Derailleur | Shimano Deore |
Rear Cogs | Shimano Deore 11-46t 10spd |
Shifters | Shimano Deore |
Handlebars | Kona XC/BC Riser |
Tape/Grips | Kona Key Grip |
Stem | Kona XC |
Brake Levers | Shimano MT401 |
Brakes | Shimano MT410 |
Pedals | Kona JS2 |
Saddle | WTB Volt |
Seat Post | Kona Thumb w/Offset 31.6mm |
Seat Binder | Kona Clamp |
Accessories & Extras | Shimano E6100 20MPH Drive Unit, Shimano 504Wh Battery, Shimano SC-E7000 Display, Shimano STEPS 2A Charger |
Color(s) | Gloss Metallic Indigo w/ Metallic Brass & Matte Ink Decals |
Sizes | S, M, L, XL |
* Subject to change without notice.
