Details

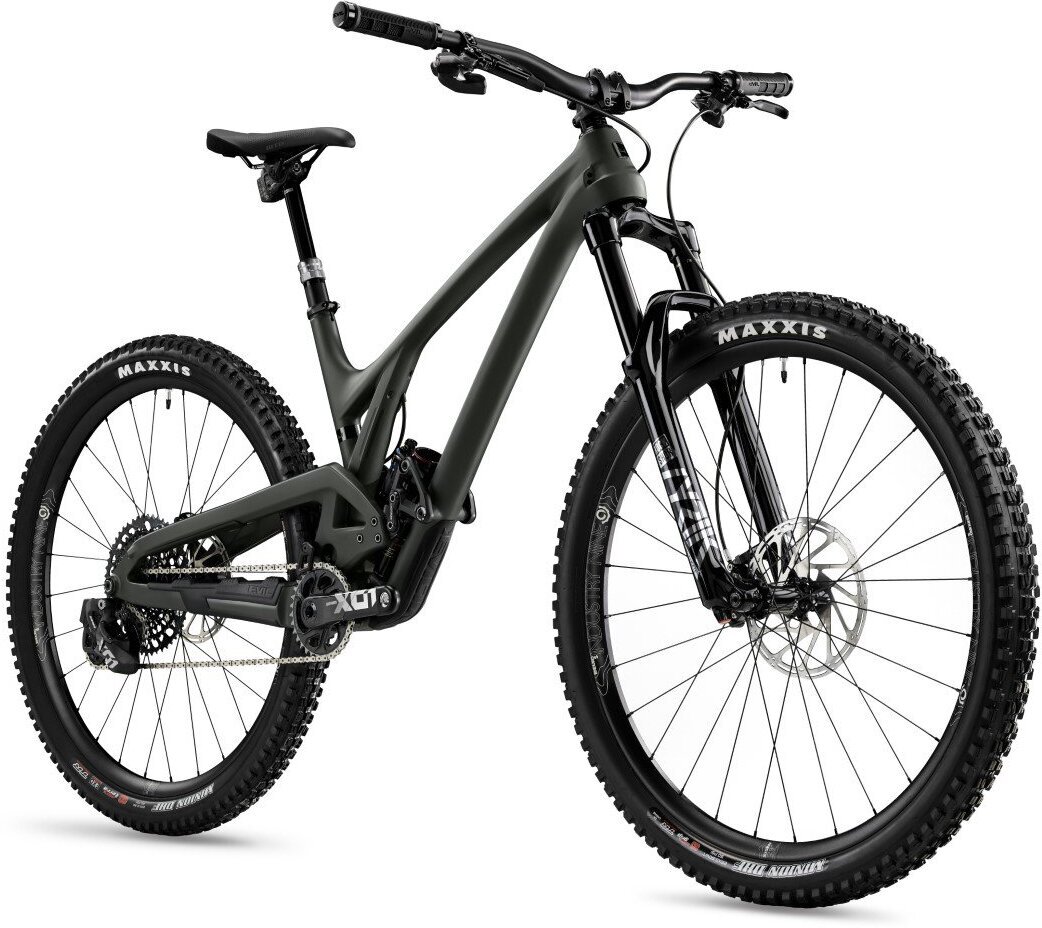

The Offering is Evil’s do-anything mountain bike. It sits happily in the center of our 29er trail bike trilogy with a shorter offset fork to keep the handling tight and a steeper seat tube to facilitate climbing. The trunnion-mounted 140mm rear shock hints at downhill prowess. The Offering has a lust for adventure and has been proven to be The One True Bike to achieve epic all-day trail missions while still having fun turning the berms and flowing jump lines. Evil from the parking lot to the peak and back again, the Offering is a tried-and-true mountain bike in the strictest sense of the term.
Geometry | Small | Medium | Large | X-Large |
---|---|---|---|---|
A - Head Tube Angle LOW | 66.4° | 66.4° | 66.4° | 66.4° |
Head Tube Angle X-LOW | 65.8° | 65.8° | 65.8° | 65.8° |
B - Seat Tube Angle LOW | 77° | 77° | 77° | 77° |
Seat Tube Angle X-LOW | 76° | 76° | 76° | 76° |
C - Virtual Top Tube Length | 594mm | 23.38" | 617mm | 24.28" | 639mm | 25.15" | 661mm | 26.03" |
D - Seat Tube Length | 355mm | 13.97" | 390mm | 15.35" | 425mm | 16.73" | 465mm | 18.30" |
E - Bottom Bracket Height LOW | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" | 347mm | 13.66" |
Bottom Bracket Height X-LOW | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" | 339mm | 13.33" |
F - Bottom Bracket Drop | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" | 26mm | 1.02" |
G - Head Tube Length | 95mm | 3.74" | 105mm | 4.13" | 115mm | 4.52" | 125mm | 4.92" |
H - Chain Stay Length Low | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
Chain Stay Length X-LOW | 432mm | 17.00" | 432mm | 17.00" | 432mm | 17.00" | 432mm | 17.00" |
I - Wheel Base LOW | 1180mm | 46.46" | 1205mm | 47.45" | 1231mm | 48.45" | 1256mm | 49.45" |
Wheel Base X-LOW | 1181mm | 46.50" | 1207mm | 47.50" | 1232mm | 48.50" | 1257mm | 49.51" |
J - Axle to Crown LOW | 561mm | 22.09" | 561mm | 22.09" | 561mm | 22.09" | 561mm | 22.09" |
K - Offset | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" | 42mm | 1.65" |
L - Front to Center | 750mm | 29.52" | 775mm | 30.51" | 801mm | 31.53" | 826mm | 32.51" |
M - Trail LOW | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" | 115mm | 4.52" |
Trail X-LOW | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" | 116mm | 4.56" |
N - Stack | 613mm | 24.13" | 622mm | 24.5" | 632mm | 24.86" | 641mm | 25.22" |
O - Reach | 448mm | 17.36" | 469mm | 18.47" | 491mm | 19.32" | 512mm | 20.17" |
P - Standover | 672mm | 26.45" | 684mm | 26.92" | 695mm | 27.38" | 706mm | 27.8" |
Sizing | 5'3" - 5'8" | 5'7" - 6'0" | 5'10" - 6'4" | 6'3"+ |
Specs
Frame | EVIL Offering 140mm Travel UD Carbon, Internal Cable Routing, Integrated Upper Guide, SuperBoost+ |
---|---|
Fork | Fox 36 Factory, Grip 2, 150mm Travel, 44mm Offset |
Headset | Cane Creek 40 Series ZS 57/68 |
Rear Shock | Rockshox Super Deluxe RCT Debonair, 185x55, DB LLC 380 |
Rims/Wheels | Industry Nine Enduro S |
Hubs | Front: Industry Nine Hydra, Internal Width: 30.5mm, Hub Width: 110x15mm Rear: Industry Nine Hydra, Internal Width: 30.5mm, Hub Width: 157x12mm |
Spokes | Sapim S-Series Straight Pull |
Tires | Front: Maxxis Minion DHF EXO TR, 29x2.5 Rear: Maxxis Minion DHR EXO TR, 29x2.3 |
Crankset | SRAM GX Eagle DUB, SuperBoost+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar |
Bottom Bracket | SRAM DUB 73mm BSA |
Chain | SRAM GX Eagle w/Powerlock |
Rear Derailleur | SRAM GX Eagle, 12sp |
Shifters | SRAM GX Eagle, 12sp |
Handlebars | Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm |
Tape/Grips | Evil Lock-on |
Stem | Evil 12 Gauge Stem, Length: 35mm |
Brakes | SRAM G2 RS |
Saddle | WTB Volt Pro |
Seat Post | Bike Yoke Revive, S:125mm, M: 160mm, L:185mm XL: 213mm |
* Subject to change without notice.
