Details

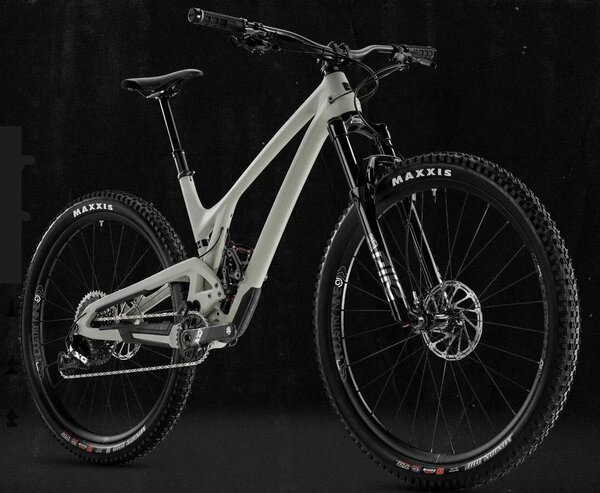

The Following is the 120mm 29er that keeps weight to a minimum and fun on full blast. It’ll climb all day and beg for more, it’ll high five its way through berms, gaps, rock gardens and eye-watering speed on the way down. It’s Evil’s version of a trail bike—the crusher of all things crusher, the rally car of two wheels, and every bit as unclassifiable as its inception—XC Rage, Shred-Country, TRAnihILation, TAll Mountain, nothing does it justice.
Geometry | Small | Medium | Large | X-Large |
---|---|---|---|---|
A - Head Tube Angle LOW | 67.9° | 67.9° | 67.9° | 67.9° |
Head Tube Angle X-LOW | 67.2° | 67.2° | 67.2° | 67.2° |
B - Seat Tube Angle LOW | 77° | 77° | 77° | 77° |
Seat Tube Angle X-LOW | 76.5° | 76.5° | 76.5° | 76.5° |
C - Virtual Top Tube Length | 585mm | 23.03" | 609mm | 23.98" | 626mm | 24.63" | 646mm | 25.45" |
D - Seat Tube Length | 381mm | 15.00" | 432mm | 17.00" | 470mm | 18.50" | 508mm | 20.00" |
E - Bottom Bracket Height LOW | 335mm | 13.17" | 335mm | 13.17" | 335mm | 13.17" | 335mm | 13.17" |
Bottom Bracket Height X-LOW | 327mm | 12.86" | 327mm | 12.86" | 327mm | 12.86" | 327mm | 12.86" |
F - Bottom Bracket Drop | 36mm | 1.40" | 36mm | 1.40" | 36mm | 1.40" | 36mm | 1.40" |
G - Head Tube Length | 90mm | 3.54" | 110mm | 4.33" | 110mm | 4.33" | 120mm | 4.72" |
H - Chain Stay Length LOW | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" | 430mm | 16.93" |
Chain Stay Length X-LOW | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" | 432mm | 17.01" |
I - Wheel Base LOW | 1148mm | 45.19" | 1176mm | 46.28" | 1196mm | 47.07" | 1219mm | 48.00" |
Wheel Base X-LOW | 1149mm | 45.24" | 1177mm | 46.32 | 1197mm | 47.11" | 1220mm | 48.05" |
J - Axle to Crown LOW | 521mm | 20.51" | 521mm | 20.51" | 521mm | 20.51" | 521mm | 20.51" |
K - Offset | 51mm | 2.01" | 51mm | 2.01" | 51mm | 2.01" | 51mm | 2.01" |
L - Front to Center | 720mm | 28.36" | 748mm | 29.44" | 768mm | 30.23" | 792mm | 31.16" |
M - Trail LOW | 96mm | 3.76" | 96mm | 3.76" | 96mm | 3.76" | 96mm | 3.76" |
Trail X-LOW | 100mm | 3.93" | 100mm | 3.93" | 100mm | 3.93" | 100mm | 3.93" |
N - Stack | 586mm | 23.06" | 604mm | 23.79" | 604mm | 23.79" | 614mm | 24.15" |
O - Reach | 440mm | 17.34 | 460mm | 18.12" | 480mm | 18.91" | 500mm | 19.70" |
P - Standover | 650mm | 25.59" | 664mm | 26.15" | 675mm | 26.56" | 689mm | 27.12" |
Specs
Frame | Following 120mm Travel, UD Carbon, Full Internal Cable Routing, SB+ 157, Integrated Chain Guide, Threaded BB |
---|---|
Fork | Rockshox Pike Ultimate Charger 2 RC2, Debonair 130mm Travel, 51mm Offset |
Headset | Cane Creek 40 Series ZS44/ZS62 |
Rear Shock | Rockshox Deluxe Ultimate RCT Debonair, Trunnion 165x45, ML1 380 2 Tokens |
Rims/Wheels | Front: Industry Nine Enduro S Rear: Industry Nine Enduro S |
Hubs | Front: Industry Nine Hydra, Internal Width: 30.5mm, Hub Width: 110x15mm Rear: Industry Nine Hydra, Internal Width: 30.5mm, Hub Width: 157x12mm |
Spokes | Sapim S-Series Straight Pull |
Tires | Front: Maxxis Minion DHF EXO TR, 29x2.5 Rear: Maxxis Minion DHR EXO TR, 29x2.3 |
Crankset | SRAM GX Eagle DUB, SUPERBOOST+, 170mm, Direct Mount 32t, 56.5mm Chainline, Lunar |
Bottom Bracket | SRAM DUB 73mm BSA |
Chain | SRAM GX Eagle w/Powerlock |
Rear Derailleur | SRAM GX Eagle, 12sp |
Shifters | SRAM GX Eagle, 12sp |
Handlebars | Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm |
Tape/Grips | Evil Palmela Handerson lock-on |
Stem | Evil 12 Gauge, Length: 45mm |
Brakes | SRAM G2 RS |
Saddle | WTB Volt Pro |
Seat Post | OneUp Dropper Post - V2 S:120mm, M: 150mm, L:180mm XL: 210mm |
* Subject to change without notice.
